Creating VPC Subnets and Tiers

Subnets and tiers are essential components of network design to ensure efficient traffic management and security.

Subnet and Tiers​

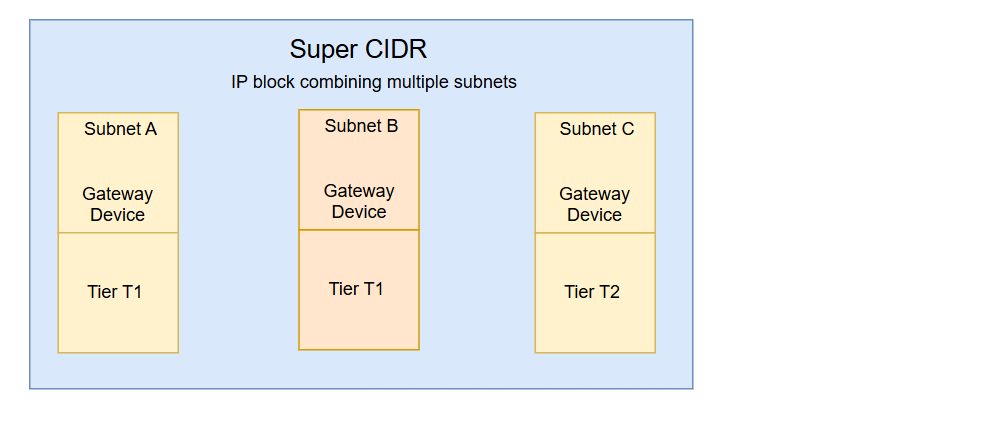

In a VPC, subnets define IP-based network segments, and tiers represent logical layers of your application architecture. You can design networking tiers within this VPC based on the overall network size and the allocated Super CIDR range. Subnet and Tier To add a tier to your VPC, navigate to the VPC, select the Subnets and Tiers section. The following details are displayed:

  • Name of the tier.
  • Gatewayfor the subnet.
  • Netmask for the tier/subnet.
  • Tier CIDR for this tier.
  • Tier IPv6 Gateway of this tier.
  • Tier IPv6 CIDR of this tier.

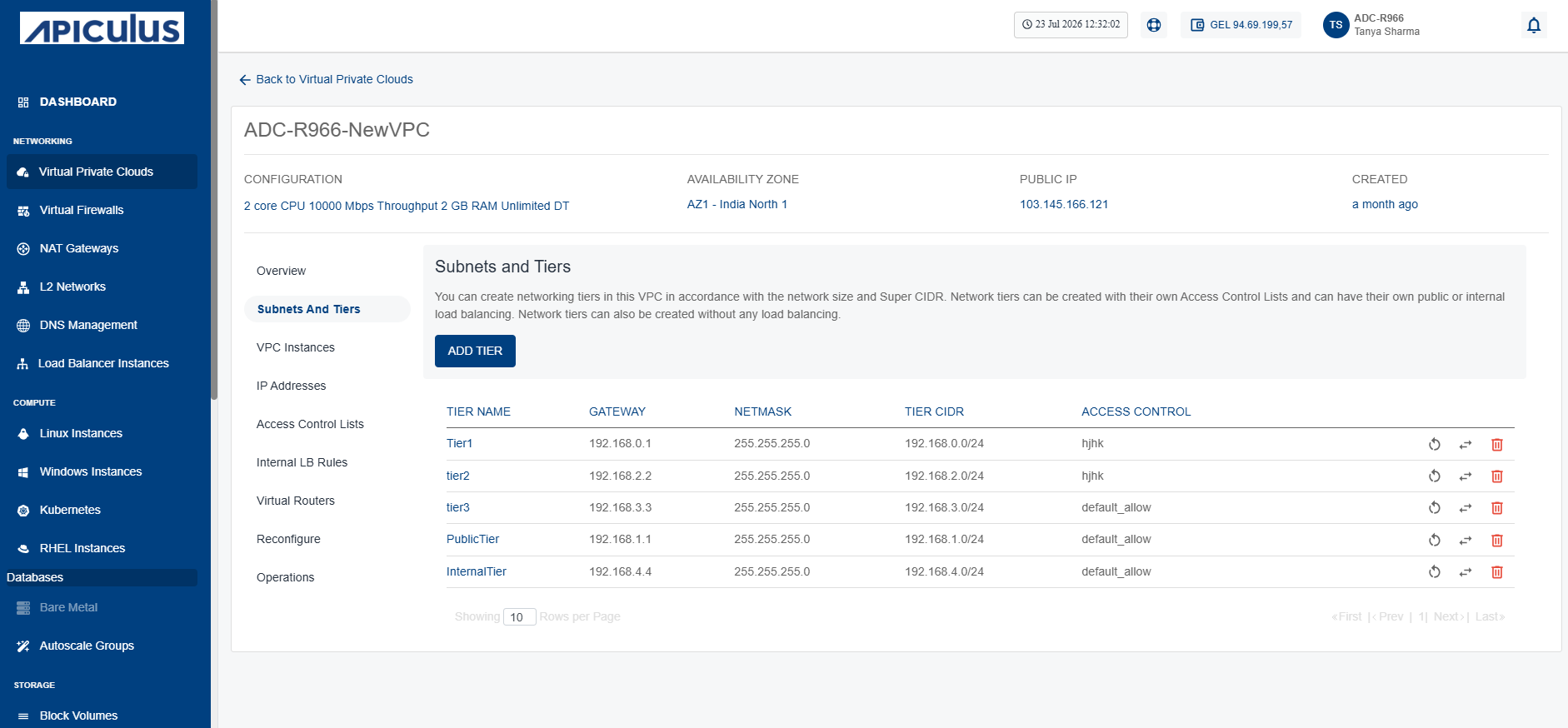

  • Access Control of this tier. Creating VPC Subnets/Tiers There are three icons available on the right side for quick actions:
    • Restarting the network
    • Replacing the access control list
    • Deleting the tier

Adding a Tier​

To add a tier, follow these steps:

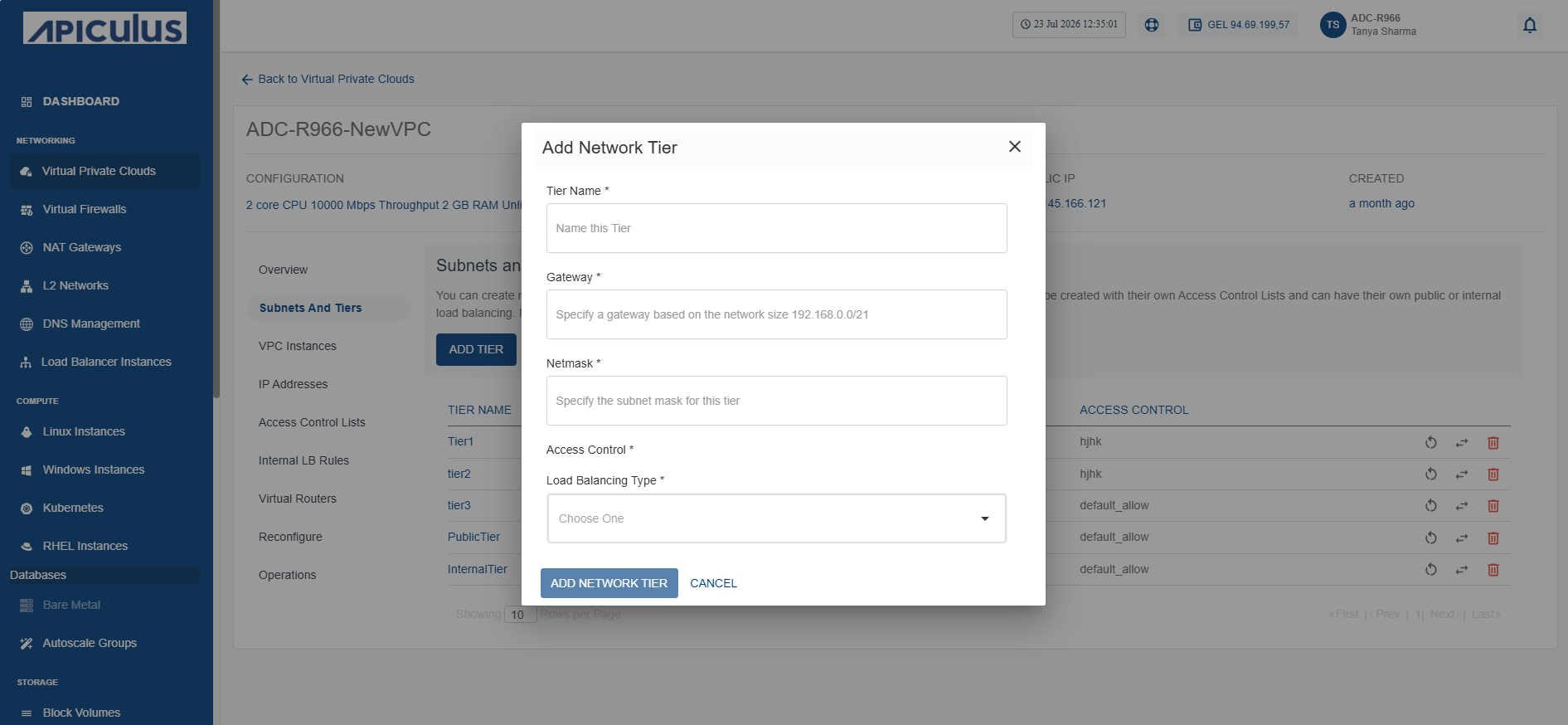

  1. Click the Add Tier button. The following screen appears: img
  2. Enter the following details:
    • Tier Name: Name of the network tier you are creating.
    • Gateway: IP address for the gateway of the tier.
    • Netmask: Subnet mask defining the IP range.
    • Access Control: Choose rules for network traffic control.
  3. Click the Add Network Tier button.
note

You can attach the network tier to the instance as a Network Interface Card (NIC).

Replacing an ACL​

To replace an ACL, follow these steps:

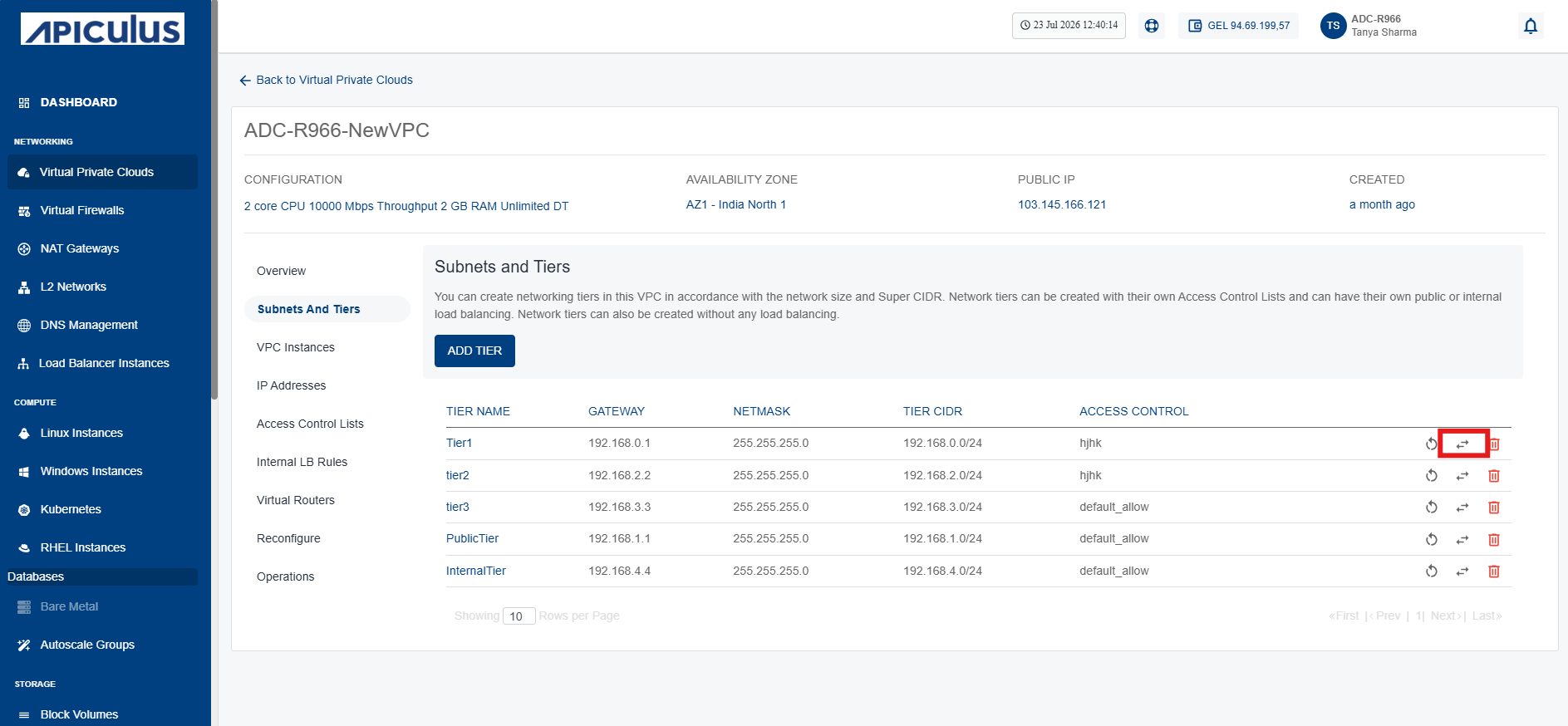

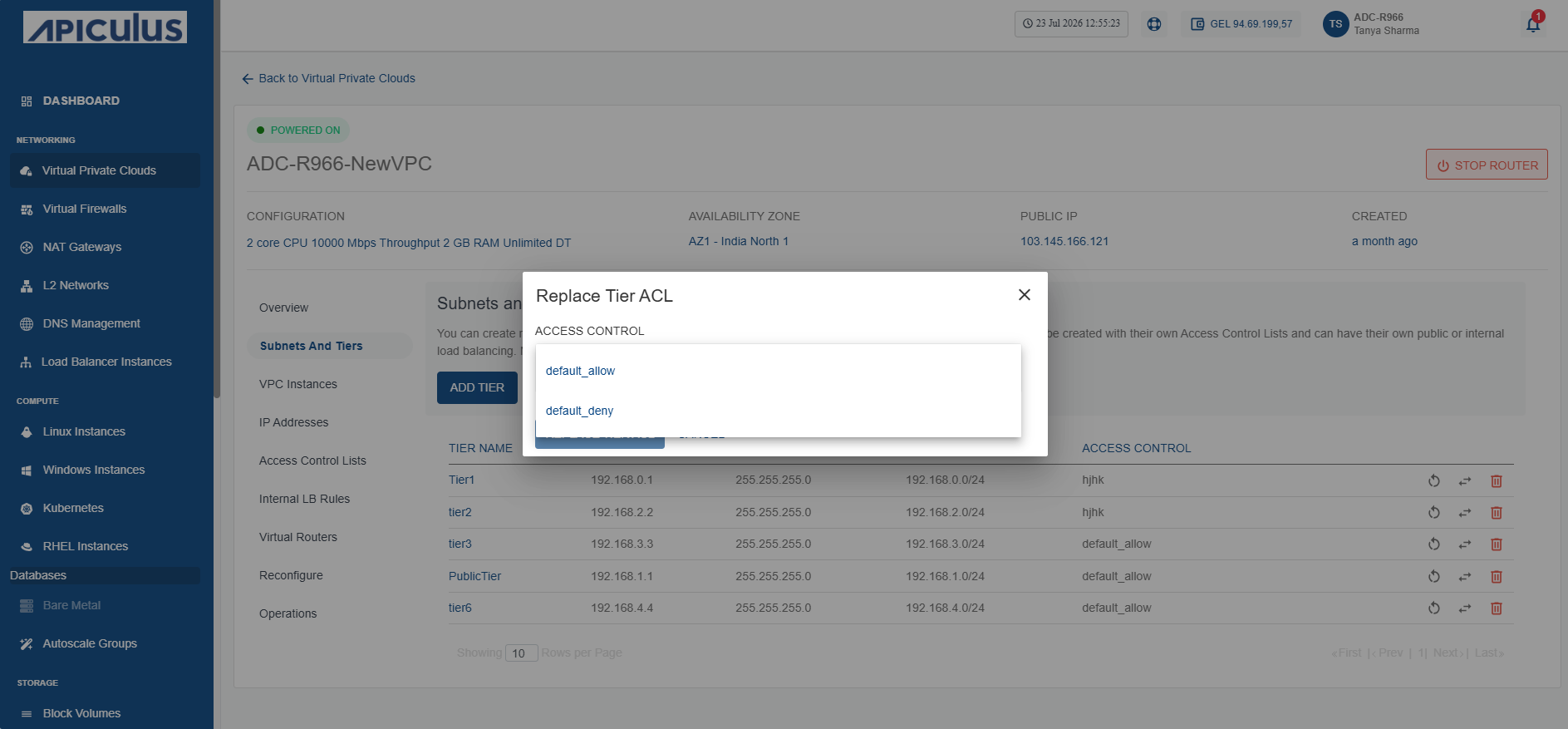

  1. Click the Replace Access Control List (highlighted in red) icon. img The following screen appears: img
  2. Select a different ACL from the dropdown list.
  3. Click the Replace Tier ACL button.

The tier is attached with selected ACL.

Public Load Balancer​

A Public Load Balancer is used to manage traffic that comes from the internet. It comprises a public IP address, allowing users or external systems to access your application from outside your network.

Use Case​

  • Select this option if your application or service needs to be accessed from the public internet.
  • It is ideal for websites, public APIs, or any system where users connect directly from browsers or apps.

Placement​

  • It is placed in the web tier, which is a public subnet in your VPC.
  • It can forward traffic to backend instances located in either public or private subnets using routing rules.

Internal Load Balancer​

It works only inside your VPC. It has a private IP address, which means it is not accessible from the internet. It is used for managing traffic between internal services, like from your web tier to your application tier.

Use Case​

  • Select this option when your services do not need public access but need to communicate within your VPC.
  • Useful in a multi-tier setup, where one layer of your application communicates to another.

Placement​

  • It is placed in the application or internal tier, which is a private subnet.
  • It routes traffic to backend services or internal logic components.

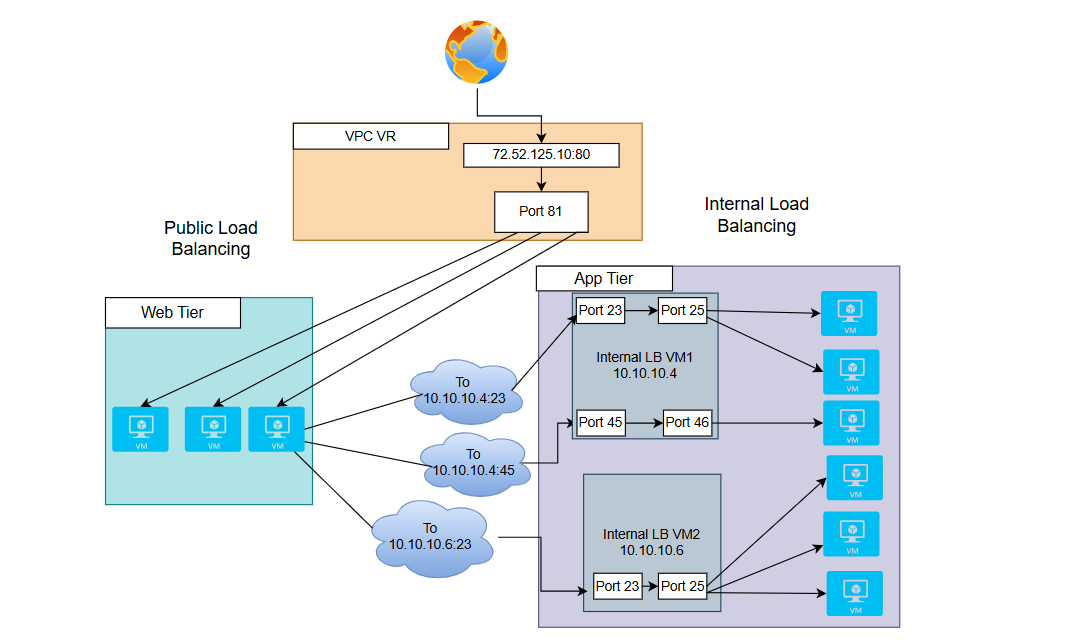

Lb

note

You can delete only the empty tiers, which means that in order to delete a tier, ensure that there are no Instances and no NAT rule(s) associated with it.
